M-Tone Fenrir Fidel De Jesus (FDJ) Signature HSS Pickups | High Output Alnico 2

Fidel De Jesus & Montances Team spent time chasing a very specific sound on stage—a versatile rig that could howl with ferocious power but instantly clean up with a sweet, dynamic soul. Enter the Fenrir HSS. Born from that relentless tone chasing, this signature set pairs the singing, spongy warmth of Alnico 2 magnets with a massive high-output bridge and articulate single coils. It’s a versatile beast, giving you everything from glassy cleans to thick, roaring overdrive. Each pickup is machine-wound in the Philippines for flawless consistency.

Key Features & Tonal Benefits

• Alnico 2 Magnets: Delivers a warm, sweet top end and a spongy, dynamic attack perfect for expressive playing.

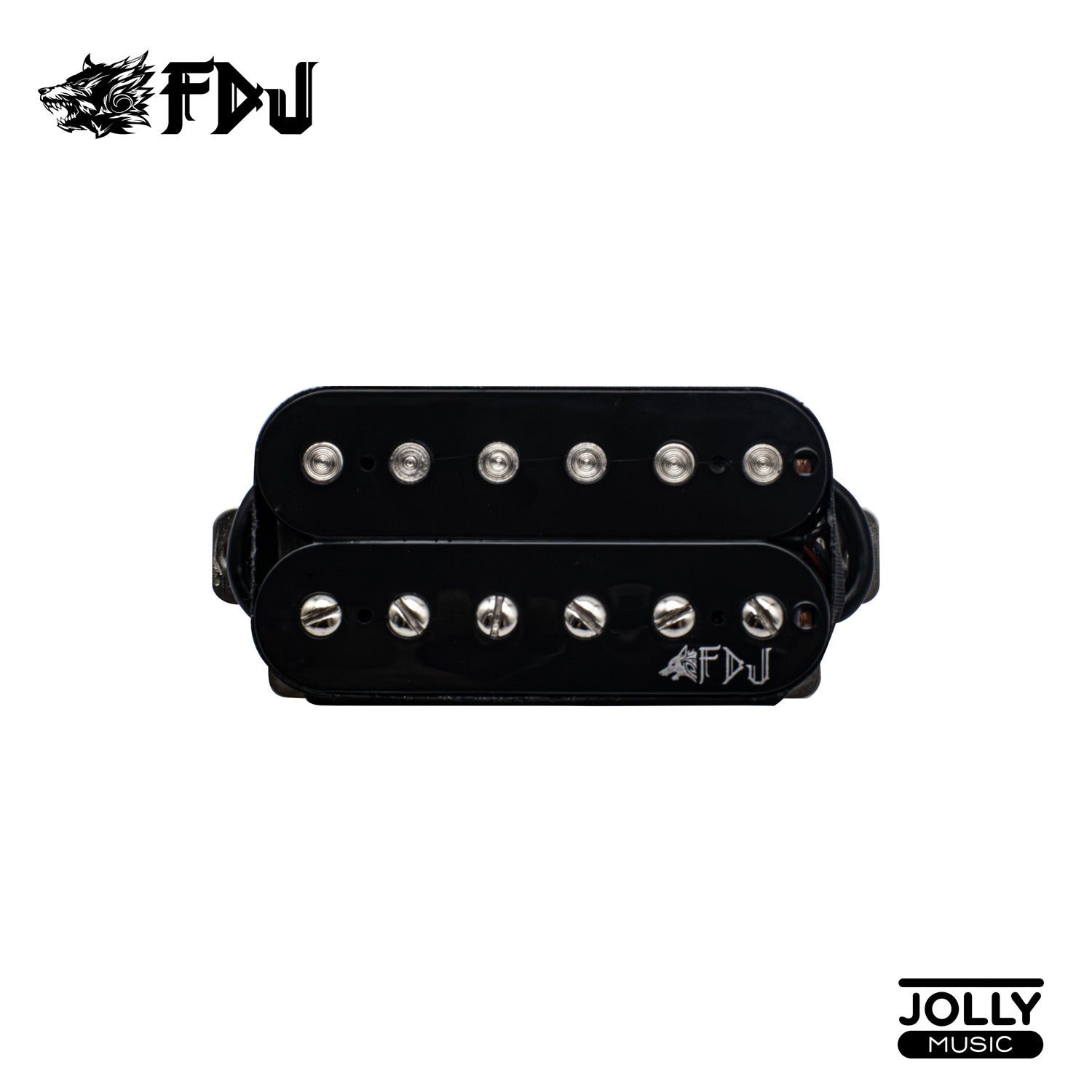

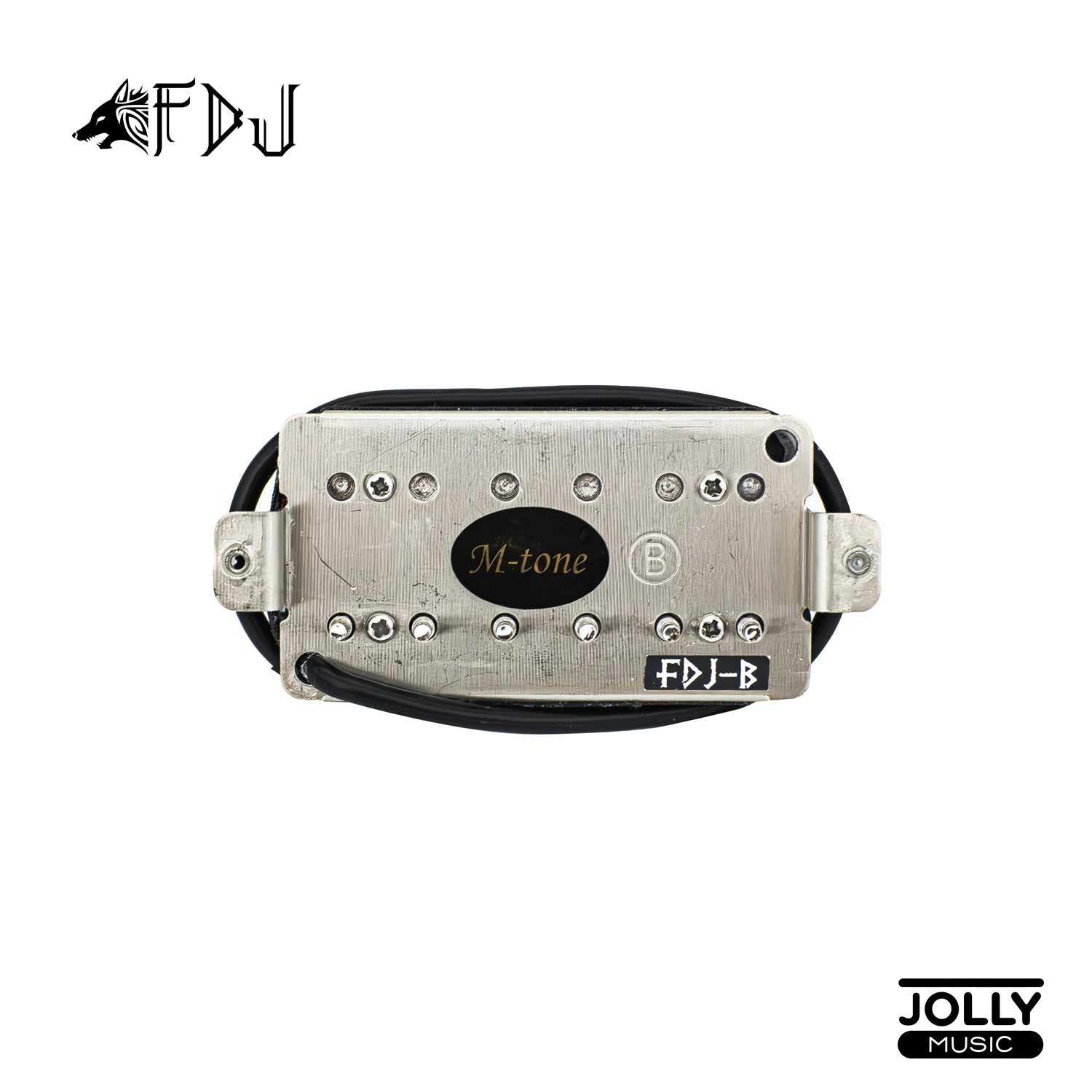

• Overwound Bridge Humbucker: Hits your amp hard for thick, screaming leads and heavy riffs without harsh ice-pick highs.

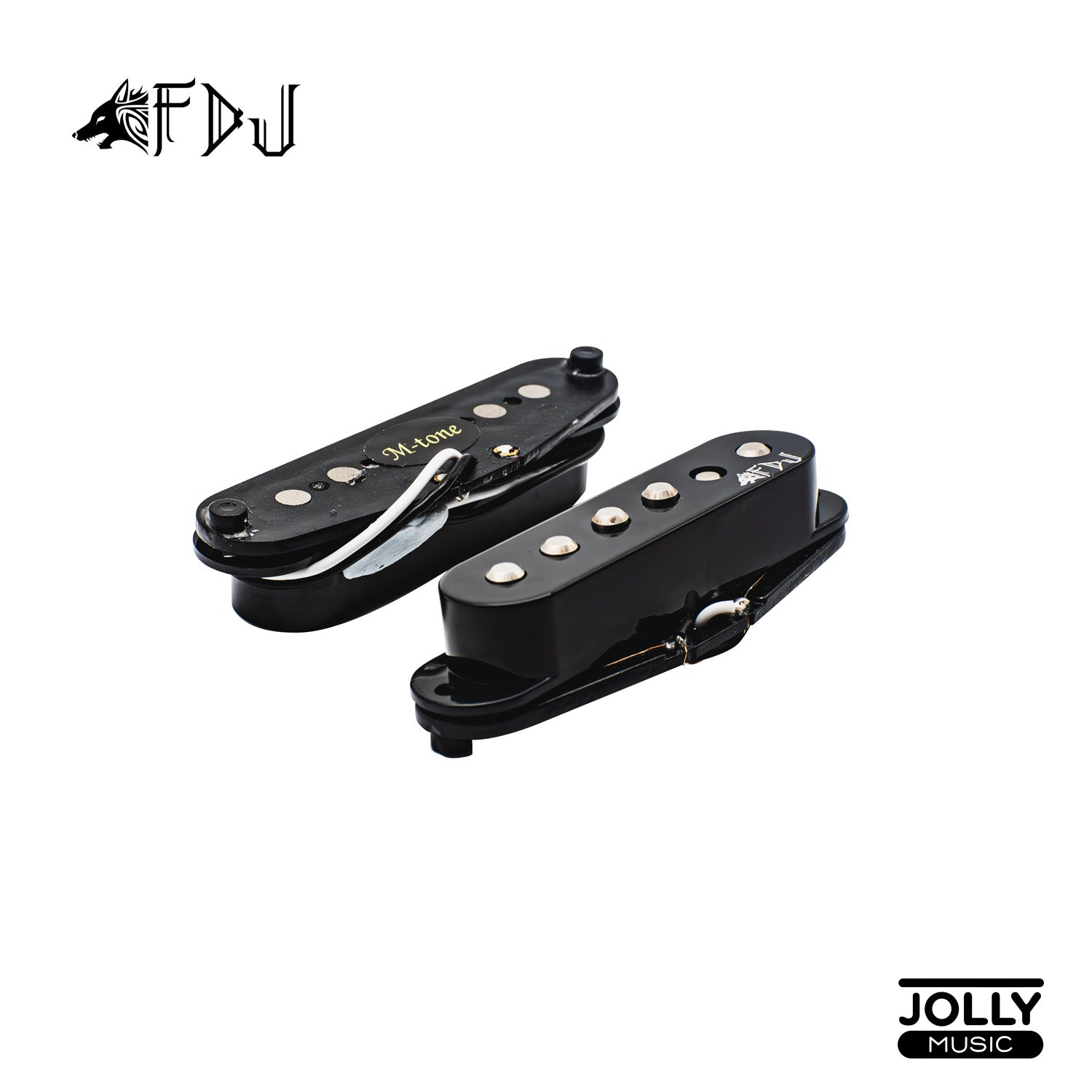

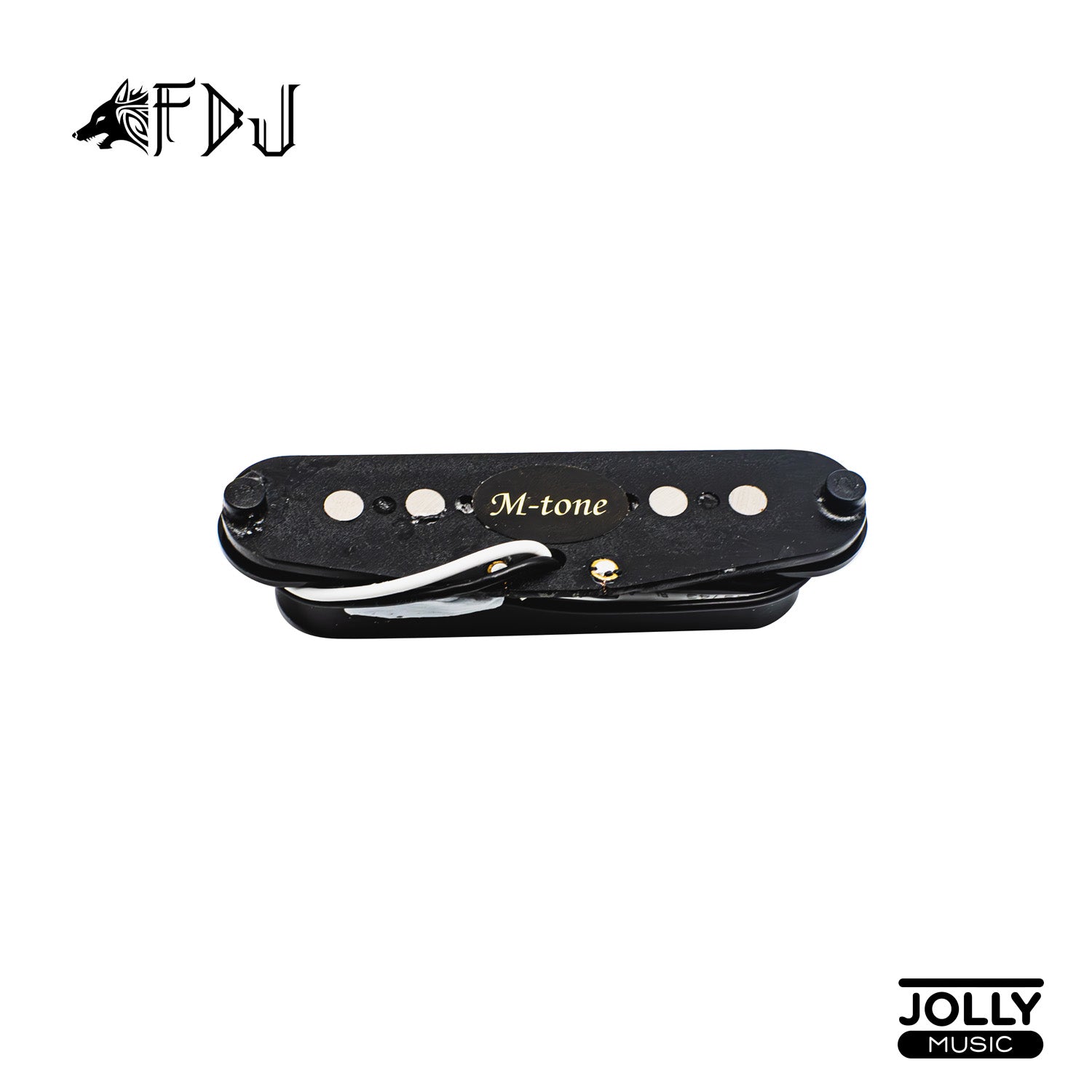

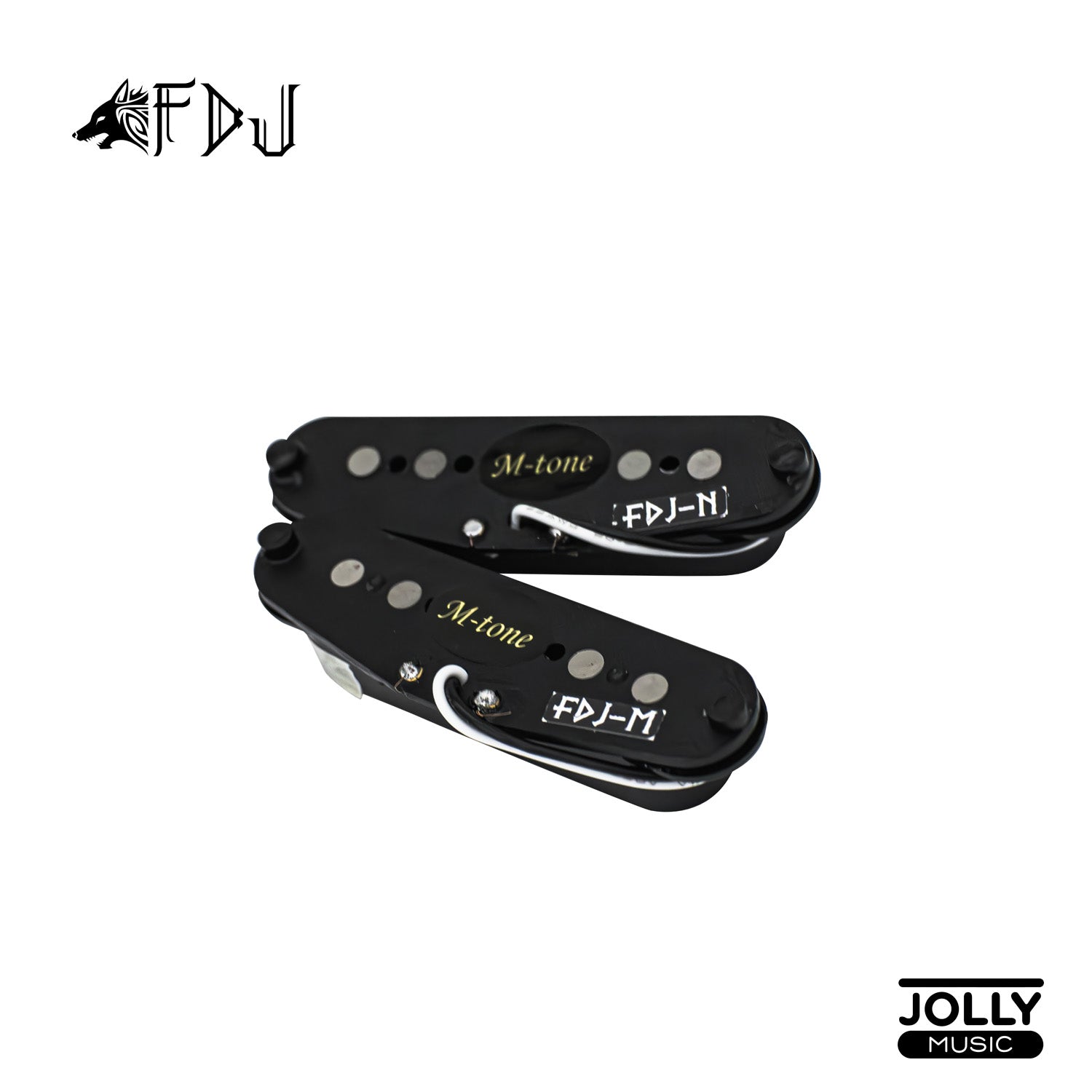

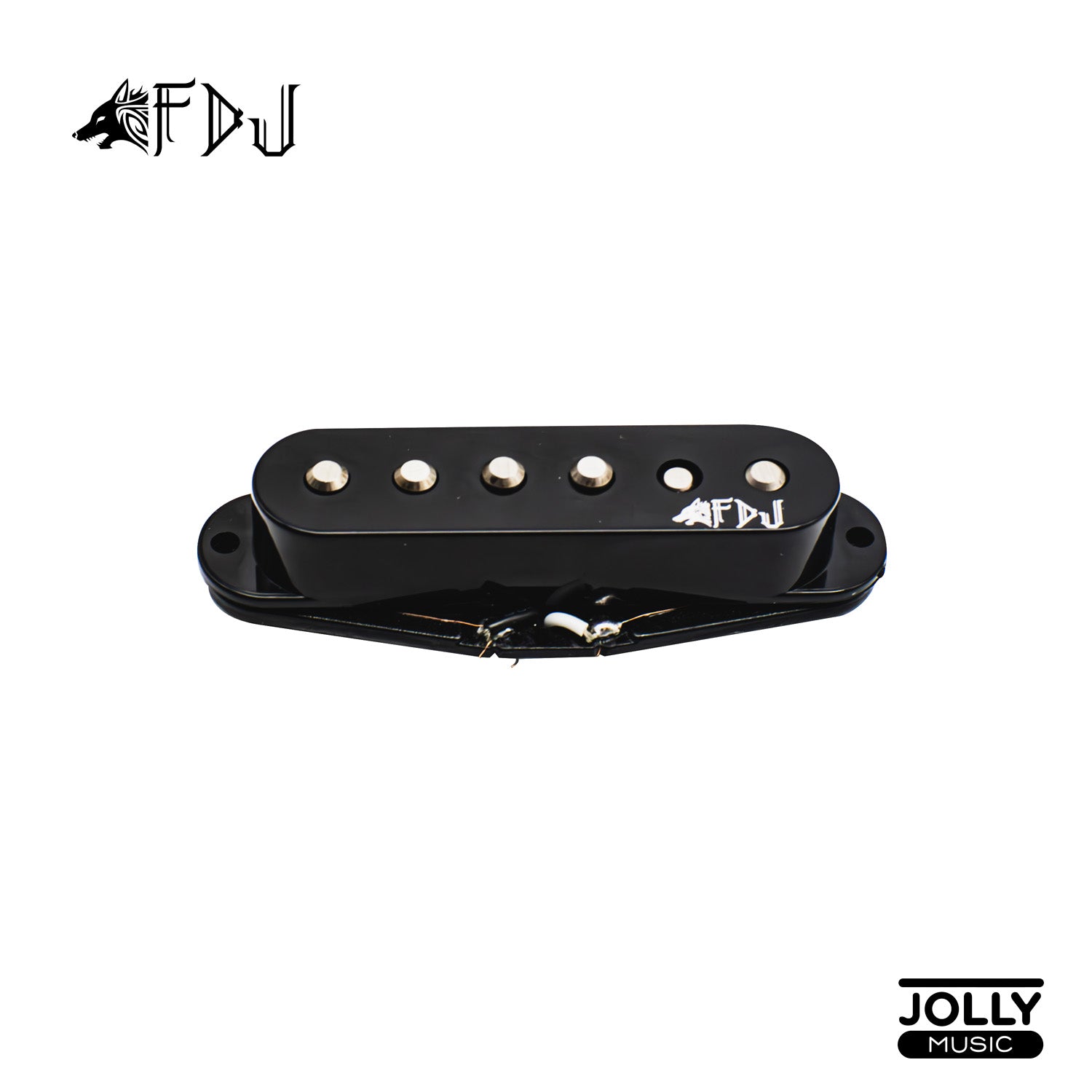

• Vintage-Hot Single Coils: Balances perfectly with the bridge, offering glassy, articulate neck and middle tones.
• Calibrated HSS Design: Ensures smooth volume transitions and a unified voice when switching between positions.

Technical Specifications

• Magnet Type: Alnico 2 (Neck, Middle, Bridge)
• DC Resistance (DCR): Neck 6.2kΩ | Middle 6.2kΩ | Bridge 14.6kΩ
• Inductance: Engineered for balanced HSS output
• Wiring Type: 5-Conductor (Bridge) / 2-Wire (Neck & Middle)
• Polarity: RW/RP Middle for hum-canceling in positions 2 and 4
• String Spacing: 52mm
• Recommended Pot Value: 500k (Optional 500k resistor in Parallel for Single-Coil Pickups)

Wiring Legend

• Neck Pickup: White – Hot, Black – Ground
• Middle Pickup: Red– Hot, Black – Ground
• Bridge Pickup: Red – Hot, White – Ground, Black & Green – Coil Split, Bare – Shield

Package & Inclusions

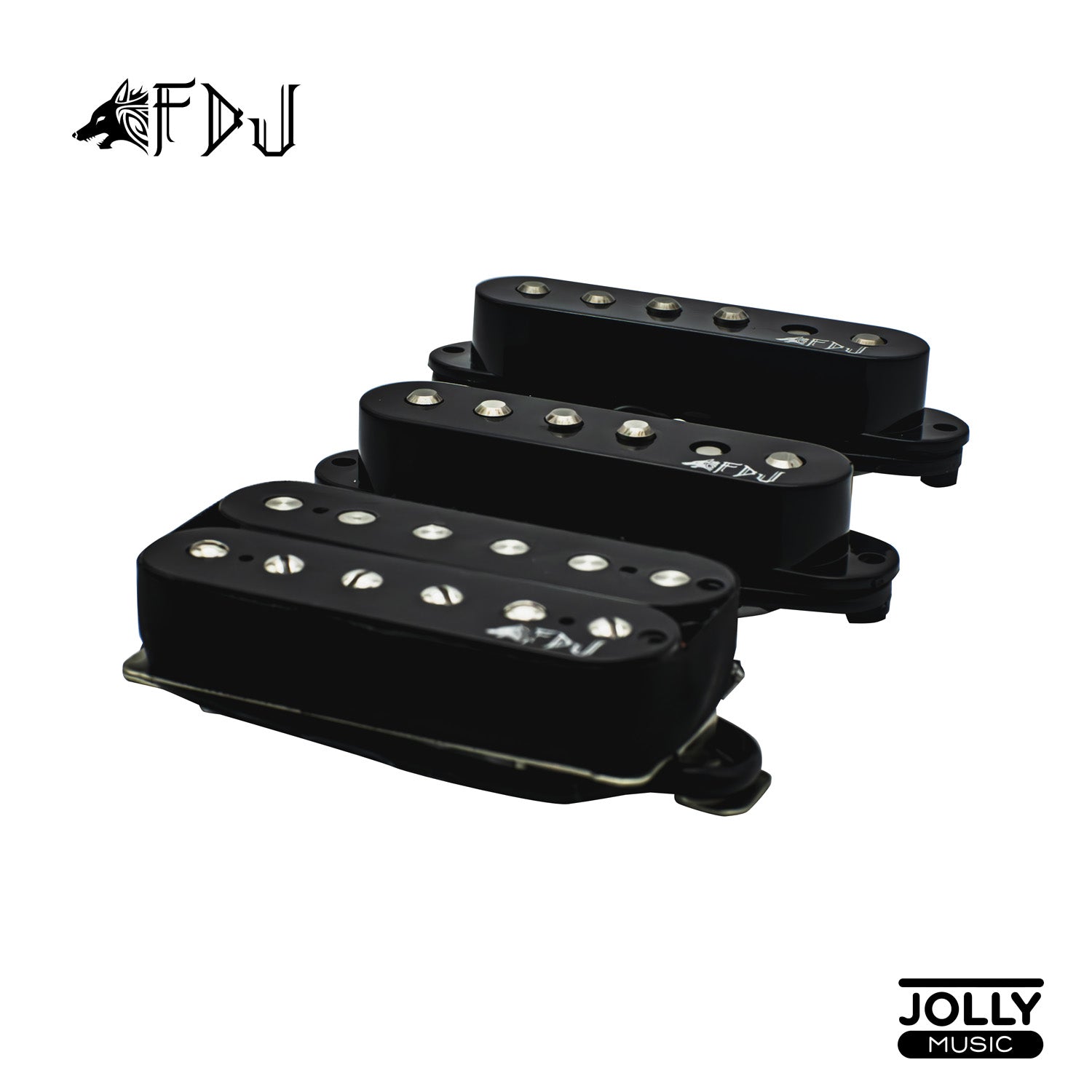

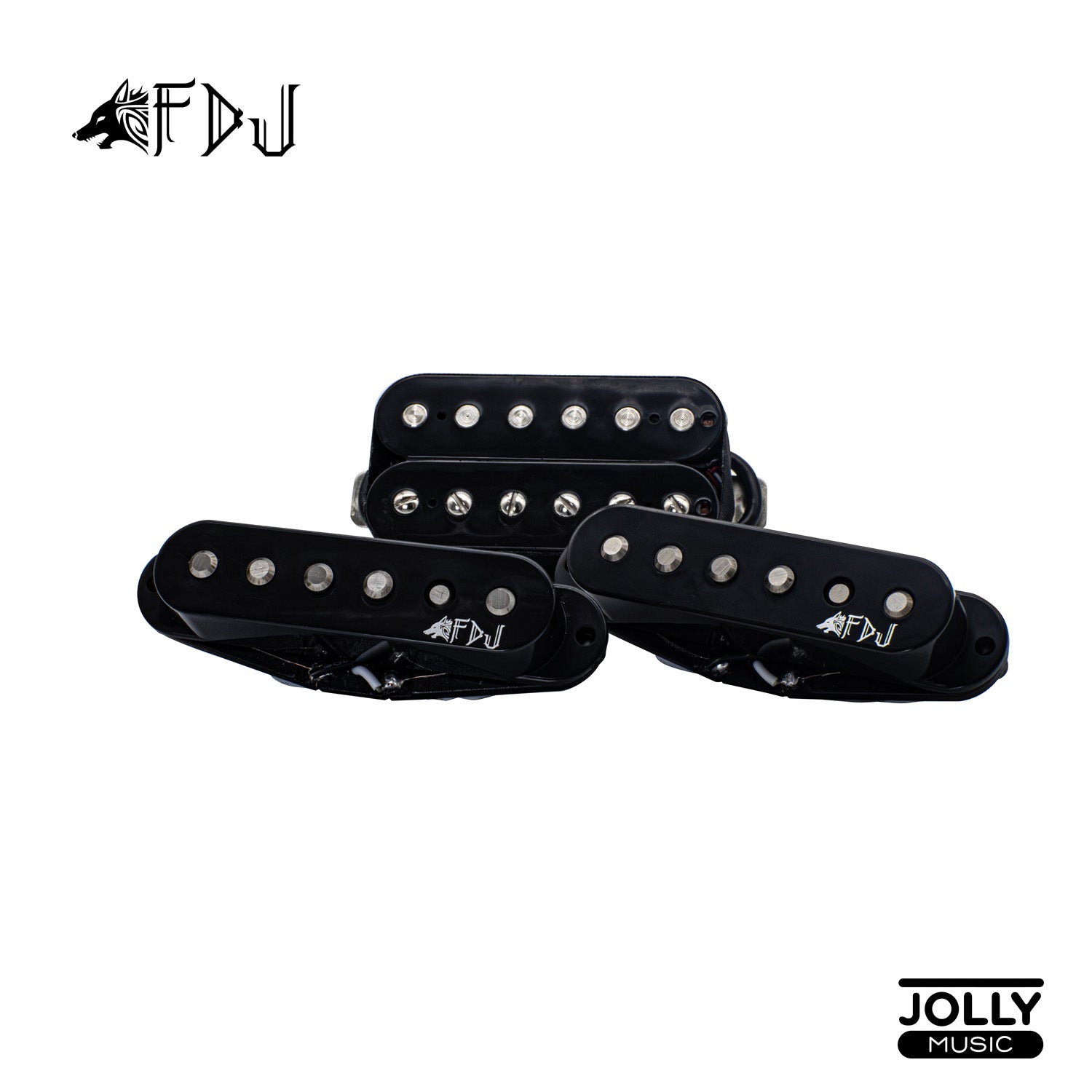

• 1x Fenrir Bridge Humbucker
• 1x Fenrir Middle Single Coil
• 1x Fenrir Neck Single Coil
• Mounting Screws and Springs
• Wiring Diagram
• Thank You Card

FAQ

• Will this fit my Stratocaster? Yes, it drops right into standard HSS-routed Strat-style pickguards.
• Can I split the bridge humbucker? Absolutely. The 4-conductor wiring allows for coil-splitting to get authentic single-coil snap.
• Why Alnico 2 for a high-output bridge? It tames the highs. You get massive power (14.6k) but with a smooth, singing midrange.
• What capacitors should I use? We recommend a .022uF or .047uF tone cap depending on how dark you want the roll-off.

Warranty & Support

• 7-Day Replacement Warranty – Covers any factory defects.
• 30-Day Satisfaction Exchange – Exchange if not the right tone.
• 2-Year Limited Warranty – Covers repair and performance under normal use.
• Repair & Rewinding Services – Available at discounted rates for all Montances customers.

M-Tone: Your First Upgrade Done Right

• Built for the Gig. Priced for the Player. Stage-ready clarity and power trusted by working musicians.
• Precision-Wound for Flawless Consistency. Each pickup is machine-wound for balanced tone and reliability.
• Quality Components. Musical Performance. Using globally sourced materials, M-Tone pickups deliver the punch and precision that cut through any mix.
• The Smart Upgrade. No Compromises. Experience professional-grade tone, reliability, and craftsmanship—without breaking your setup.

About M-Tone (Brand Story)

M-Tone Pickups are the proprietary electronics line from Montances Guitar Wiring, a trusted authority in guitar tone shaping. Meticulously voiced to deliver professional clarity and dynamic response, M-Tone pickups are designed to bridge the gap between vintage character and modern reliability. Whether you need chimey cleans or distinct gain, M-Tone provides the high-fidelity signal path your instrument deserves. Your First Upgrade done right.
